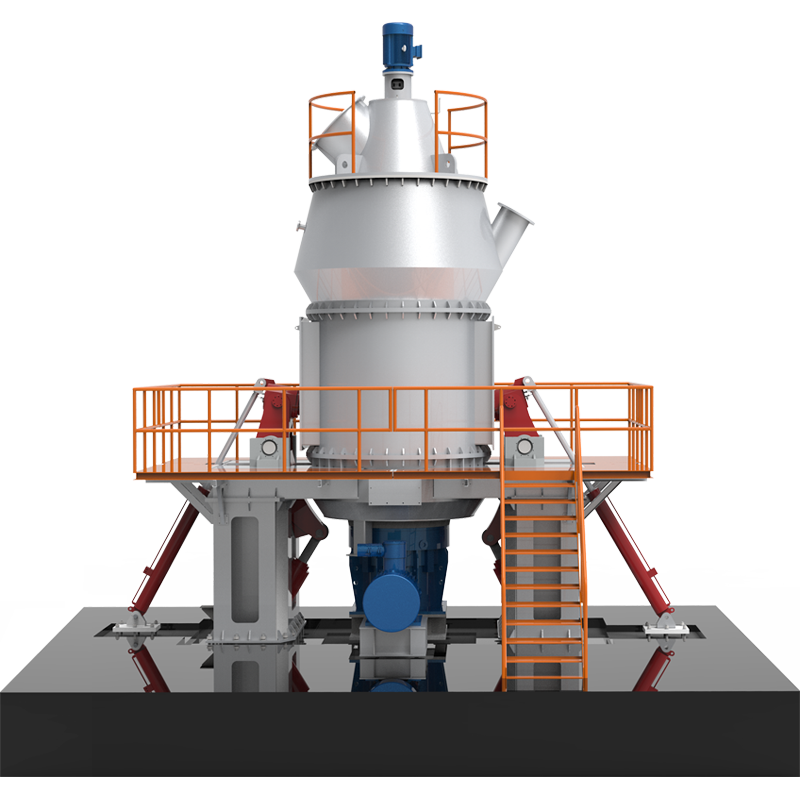

Applicable material of Vertical roller mill
The equipment is suitable for cement, metallurgy, the chemical industry, solid waste treatment, non-metal, non-ferrous metal, power plant coal grinding, and other industries. It is used for grinding cement raw materials, clinker (slag), coal, gypsum, pyrophyllite, calcite, quartz, zinc, tin, and other materials.
Advantages of CRLM Vertical Roller Mill
Low construction cost:
compared with the vertical mill and ball mill systems, the floor area is reduced by 50%, and the construction cost is reduced by about 70%; Because it integrates crushing, drying, grinding, and graded conveying, the system is simple, can be arranged in the open air, and the investment and construction cost is low;
Low operating cost
high grinding efficiency, low power consumption, and ball mill compared to reduce 40~50% power consumption; The roller and liner are made of high chromium wear-resistant material, with less wear, long service life and reduced operating cost; Can be equipped with external circulation device, can further reduce power consumption;
Reliable operation:
Equipped with an automatic control device, remote control can be achieved, with simple operation; Equipped with Siemens PLC system， one key to start
It is equipped with a limit device to prevent contact between the roller and the liner, which can effectively protect the equipment;
Easy maintenance
By overturning the cylinder roller assembly, the roller and liner can be repaired and maintained better and faster;
Environmentally friendly
Environmental protection and clean:low vibration, low noise, the system is in negative pressure operation, no dust spill;
| Typle | CRLM1500K | CRLM1700K | CRLM2000K | CRLM2200K | CRLM2400K | CRLM2800K | CRLM3400K |
|---|---|---|---|---|---|---|---|
| Capacity（t/h） | 6-8 | 10-12 | 15-22 | 25-28 | 24-38 | 45-50 | 60-80 |
| Max feed（mm） | ≤10 | ||||||
| Water content（%） | <12 | ||||||
| Specific surface area of product（m2/kg） | ≥420 | ||||||
| Product moisture（%） | ≤1 | ||||||
| Power（kW） | 280 | 400 | 500 | 800 | 900 | 1600 | 2400 |
| 注：原料易磨性（Bond）指数≤12kwh/t | |||||||
