The impact crusher (referred to as the impactor) is a highly efficient and versatile crushing device suitable for processing materials such as granite, limestone, and concrete. This article provides a detailed analysis of the performance advantages, technical parameters, and application areas of the impact crusher, helping you gain a comprehensive understanding of this equipment.
1. What is an Impact Crusher?
The impactor is a high-efficiency crushing device that incorporates advanced technologies from both domestic and international sources, tailored to the specific conditions of the domestic sand and gravel industry. It utilizes advanced manufacturing techniques and a unique structural design, producing cubic-shaped end products free from tension and cracks, with excellent particle shape. It is suitable for crushing various coarse, medium, and fine materials (such as granite, limestone, and concrete) with a feed size not exceeding 500mm and a compressive strength not exceeding 350MPa.
2. Performance Advantages of Impact Crushers
- Large Feed Inlet and High Crushing Chamber: Adapts to high-hardness, large-sized materials, with minimal stone powder in the product.
- Adjustable Gap Between Impact Plate and Hammer: Effectively controls the discharge size, ensuring good particle shape.
- Compact Structure and High Rigidity: The rotor has a large moment of inertia, ensuring stable operation.
- High-Chromium Hammers: Resistant to impact and wear, with strong impact force.
- Keyless Connection: Easy maintenance, economical, and reliable.
- High-Efficiency Crushing: Comprehensive functionality, high productivity, low wear on components, and high overall efficiency.
3. Technical Parameters of Impact Crushers
The Cronus impact crusher:
| Model | Specification (mm) | Feed Inlet Size (mm) | Max Feed Size (mm) | Capacity (t/h) | Power (kW) | Dimensions (L×W×H) (mm) | Total Weight (t) |
|---|---|---|---|---|---|---|---|
| PF-1007 | Φ1000×700 | 400×730 | 300 | 30-70 | 4P 37-45 | 2330×1660×2300 | 12 |
| PF-1010 | Φ1000×1050 | 400×1080 | 350 | 50-90 | 4P 45-55 | 2370×1700×2390 | 15 |
| PF-1210 | Φ1250×1050 | 400×1080 | 350 | 70-130 | 6P 110 | 2680×2160×2800 | 17.7 |
| PF-1214 | Φ1250×1400 | 400×1430 | 350 | 80-180 | 6P 132 | 2650×2460×2800 | 22.4 |
| PF-1315 | Φ1320×1500 | 860×1520 | 500 | 100-280 | 6P 200 | 3180×2720×3120 | 27 |
| PF-1320 | Φ1300×2000 | 993×2000 | 500 | 140-380 | 6P 250 | 3220×3100×3120 | 34 |
| PF-1520 | Φ1500×2000 | 830×2040 | 700 | 200-550 | 4P 315-400 | 3959×3564×3330 | 50.6 |
| PF-1820 | Φ1800×2000 | 1260×2040 | 800 | 400-800 | 4P 630-710 | 4400×3866×4009 | 83.21 |
4. Application Areas of Impact Crushers
- Sand and Gravel Industry: Crushing materials like granite and limestone for construction aggregate production.
- Mining Industry: Processing medium-hardness ores, such as iron ore and copper ore.
- Construction Industry: Crushing concrete and construction waste for resource recycling.
- Road Construction: Used for crushing and shaping road base materials.

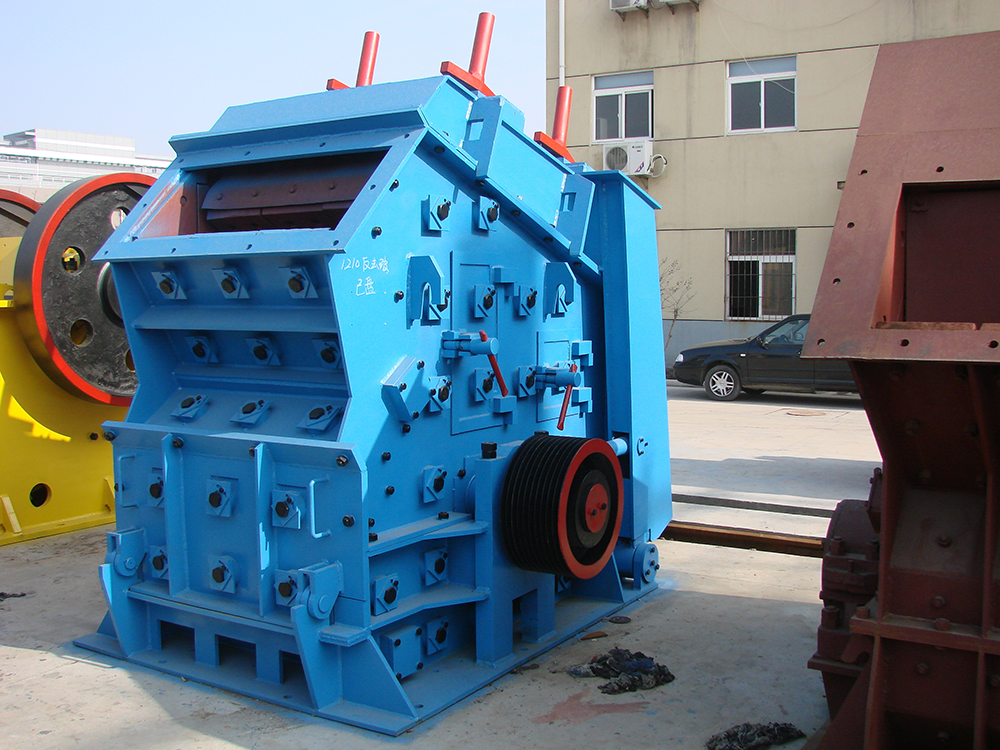

5. Photos of Impact Crushers
6. Why Choose Cronus Impact Crushers?
- Advanced Technology: Incorporates advanced domestic and international technologies, tailored to local working conditions.
- High Efficiency and Energy Saving: High crushing efficiency, low energy consumption, and significant overall benefits.
- Durable and Reliable: Features high-chromium hammers and keyless connection design, ensuring long equipment life and low maintenance costs.
- Environmental Performance: Low dust and noise levels, meeting environmental standards.
7. Future Development Trends of Impact Crushers
- Intelligent Control: Real-time monitoring of equipment operation status through sensors and automation systems.
- Energy Saving and Environmental Protection: Use of new materials and designs to further reduce energy consumption and noise.
- Multifunctionality: Development of multifunctional impact crushers suitable for various materials and working conditions.
With its advanced technology, high production efficiency, and reliable performance, the impact crusher has become the ideal choice for industries such as sand and gravel, mining, and construction. If you are looking for an efficient, durable, and environmentally friendly crushing device, the Cronus impact crusher is undoubtedly your best option. Feel free to contact us for more information or to arrange an on-site inspection!
